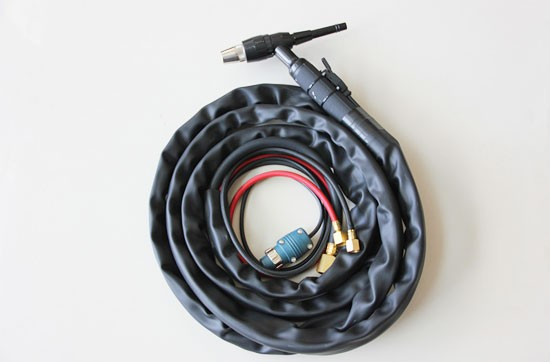

50W Water-Cooled Argon Arc Welding Torch

Detailed Product Description

Note

 All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, reference to the original manufacturer is for convenience only.

Item

Rating
Rear Connector

Certification

Packing

TIG HR-50W Water Cooled Tungsten Argon Arc Welding Torch

500A DC, 100％ Duty Cycle, Tungsten Diameter: 1.6-6.4mm

9/16''-18UNF, 7/8''-14UNF, 5/8''-18UNF

ISO9001, CCC, CE, ROHS, TUV

1set/box neutral packing, 5sets/Carton Box

1. HR-50W01

2. HR-50W02

3. HR-50W03

4. HR-50W04-1.0

4. HR-50W04-1.0

HR-50W04-2.4

HR-50W04-3.2

HR-50W04-4.0

5. HR-50W05

6. HR-50W06

7. HR-50W07

8. HR-50W08

9. HR-50W09-9.5

HR-50W09-13.7

HR-50W09-16.0

10. HR50W10

11. HR50W11

12. HR50W12

13. HR50W13

14. HR50W14

15. HR50W15

Torch body

Back Cap

Connector for water jacket

                                 Collet 1.0mm

                                 Collet 1.6mm

                                 Collet 2.4mm

                                 Collet 3.2mm

                                 Collet 4.0mm

                                 Collet Body

                                     O-Ring

                                 Water jacket

                              Insulator sleeve

                       Metal nozzle, 6#, 9.5mm

                      Metal nozzle, 8#, 13.7mm

                      Metal nozzle, 10#, 16mm

                                 Micro Switch

                               Handle for 50W

                                   Gas Hose

                                Power Cable

                                 Water Hose

                    Protective Neoprene Cover

CONSUMABLES PARTS
