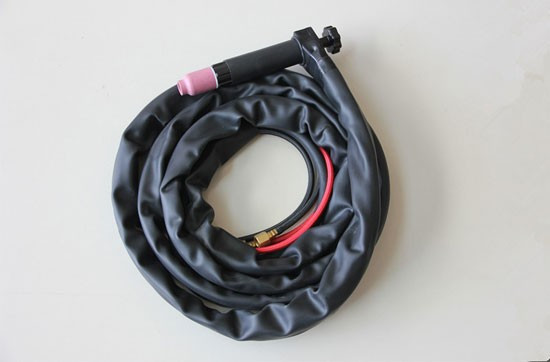

WP-27 Water-Cooled Argon Arc Welding Torch

Detailed Product Description

Note

 All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, reference to the original manufacturer is for convenience only.

Machine torch body 9''

Machine torch body 20''

Item

Rating
Rear Connector

Certification

Packing

TIG WP-27 Water Cooled Tungsten Argon Arc Welding Torch

Water Cooled 500A, Duty Cycle : 60%

M12*1, 1/4G, 7/8''-14UNF RH, 5/8''-18 UNF RH

ISO9001, CCC, CE, ROHS, TUV

1set/box neutral packing, 5sets/Carton Box

57N47

57N48

57N49

57N50

57N51

Collet Dia.2.4mm

Collet Dia.3.2mm

Collet Dia.4.0mm

                                               Collet Dia.4.8mm

                                               Collet Dia.6.4mm

Gas Lens Collet Body

Gas Lens Collet Body

 45V29

                                  45V24

                                  45V25

                                  45V26

                                  45V27

Gas Lens Body Dia. 2.4mm

Gas Lens Body Dia. 3.2mm

Gas Lens Body Dia. 4.0mm

Gas Lens Body Dia. 4.8mm

Gas Lens Body Dia. 6.4mm

                                   Gas Lens Body Dia. 0.5mm

                                   Gas Lens Body Dia. 1.0mm

                                   Gas Lens Body Dia. 1.6mm

                                   Gas Lens Body Dia. 2.4mm

                                   Gas Lens Body Dia. 3.2mm

Collet

Alumina nozzle/ Ceramic Nozzle

57N75

57N74

53N88

53N87

Std. Ceramic Cup Dia. 9.6mm

 Std. Ceramic Cup Dia. 12.8mm

                                    Std. Ceramic Cup Dia. 16mm

                                    Std. Ceramic Cup Dia. 19.2mm

49V24

49V25

49V26

49V27

49V28

CONSUMABLES PARTS

WP-27A

WP-27B
